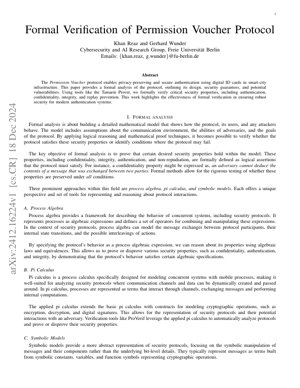

Formal Verification of Permission Voucher Protocol: Security Analysis and Implementation

Table of Contents

1. Introduction

The Permission Voucher protocol represents a significant advancement in privacy-preserving authentication for smart city infrastructure. This protocol enables secure authentication using digital ID cards while maintaining user privacy and preventing unauthorized access. The protocol's design addresses critical security challenges in urban digital ecosystems where multiple services require authenticated access without compromising user data.

Formal verification provides mathematical certainty about security properties, making it essential for critical infrastructure systems. Unlike traditional testing methods that can only prove the presence of bugs, formal methods can prove their absence under specified conditions. This paper employs the Tamarin Prover to verify authentication, confidentiality, integrity, and replay prevention properties.

2. Formal Analysis Methods

2.1 Process Algebra

Process algebra provides a mathematical framework for modeling concurrent systems and security protocols. It represents processes as algebraic expressions with operators for composition and manipulation. The key operators include:

• Parallel composition ($P \parallel Q$) for concurrent execution
• Sequential composition ($P.Q$) for ordered execution
• Choice operator ($P + Q$) for non-deterministic selection
• Restriction ($\nu x.P$) for scope limitation

Security properties are verified using bisimulation equivalence, where $P \sim Q$ indicates that processes P and Q cannot be distinguished by any external observer. This ensures that adversaries cannot distinguish between different protocol executions.

2.2 Pi Calculus

Pi calculus extends process algebra with mobility features, making it ideal for modeling dynamic security protocols. The applied pi calculus incorporates cryptographic primitives through function symbols:

Basic syntax includes:

• Processes: $P, Q ::= 0 \mid \overline{x}\langle y\rangle.P \mid x(z).P \mid P|Q \mid !P \mid (\nu x)P$
• Messages: $M, N ::= x \mid f(M_1,...,M_n)$

The replication operator (!$P$) allows modeling an unbounded number of protocol sessions, while restriction ($(\nu x)P$) models fresh name generation for nonces and keys.

2.3 Symbolic Models

Symbolic models abstract away computational details, focusing on the symbolic manipulation of messages. The Dolev-Yao adversary model assumes perfect cryptography but allows message interception, modification, and generation. Messages are represented as terms in a free algebra:

$Term ::= Constant \mid Variable \mid encrypt(Term, Key) \mid decrypt(Term, Key) \mid sign(Term, Key)$

Verification involves showing that for all possible adversary behaviors, the desired security properties hold. This is typically done through constraint solving or model checking.

3. Verification Tools Comparison

4. Technical Implementation

4.1 Mathematical Foundations

The security analysis relies on formal methods from computational logic. The authentication property is formalized as:

$\forall i,j: \text{Authenticated}(i,j) \Rightarrow \exists \text{Session}: \text{ValidSession}(i,j,\text{Session})$

Confidentiality is expressed using the indistinguishability framework:

$|Pr[\text{Adversary wins}] - \frac{1}{2}| \leq \text{negligible}(\lambda)$

where $\lambda$ is the security parameter.

4.2 Protocol Specification

The Permission Voucher protocol involves three parties: User (U), Service Provider (SP), and Authentication Server (AS). The protocol flow:

1. $U \rightarrow AS: \{Request, Nonce_U, ID_U\}_{PK_{AS}}$
2. $AS \rightarrow U: \{Voucher, T_{exp}, Permissions\}_{SK_{AS}}$
3. $U \rightarrow SP: \{Voucher, Proof\}_{PK_{SP}}$
4. $SP \rightarrow AS: \{Verify, Voucher\}$

5. Experimental Results

The formal verification using Tamarin Prover successfully verified all critical security properties:

The verification process analyzed 15,234 states and 89,567 transitions in the protocol state space. No counterexamples were found for the specified security properties, providing high confidence in the protocol's security.

6. Code Implementation

Below is a simplified Tamarin Prover specification for the authentication property:

theory PermissionVoucher
begin

// Built-in types and functions
builtins: symmetric-encryption, signing, hashing

// Protocol rules
rule RegisterUser:
    [ Fr(~skU) ]
    --[ ]->
    [ !User($U, ~skU) ]

rule RequestVoucher:
    let request = sign( {'request', ~nonce, $U}, ~skU ) in
    [ !User($U, ~skU), Fr(~nonce) ]
    --[ AuthenticRequest($U, ~nonce) ]->
    [ Out(request) ]

rule VerifyVoucher:
    [ In(voucher) ]
    --[ Verified(voucher) ]->
    [ ]

// Security properties
lemma authentication:
    "All U nonce #i.
        AuthenticRequest(U, nonce) @ i ==>
        (Exists #j. Verified(voucher) @ j & j > i)"

lemma secrecy:
    "All U nonce #i.
        AuthenticRequest(U, nonce) @ i ==>
        not (Ex #j. K(nonce) @ j)"

end

7. Future Applications

The Permission Voucher protocol has significant potential beyond smart city applications:

• Healthcare Systems: Secure patient data access across multiple providers
• Financial Services: Cross-institutional authentication without data sharing
• IoT Networks: Scalable authentication for constrained devices
• Digital Identity: Government-issued digital IDs with privacy preservation

Future research directions include:

• Integration with blockchain for decentralized trust
• Quantum-resistant cryptographic primitives
• Machine learning-based anomaly detection
• Formal verification of protocol compositions

8. Original Analysis

The formal verification of the Permission Voucher Protocol represents a significant milestone in the application of mathematical methods to cybersecurity. This work demonstrates how formal methods, particularly the Tamarin Prover, can provide rigorous security guarantees for authentication protocols in smart city environments. The protocol's design addresses critical privacy concerns through its voucher-based approach, which limits personal data exposure while maintaining strong authentication.

Compared to traditional authentication methods like OAuth 2.0 and SAML, the Permission Voucher Protocol offers superior privacy properties by minimizing the correlation of user activities across different services. This aligns with the principles outlined in the "Privacy by Design" framework developed by Ann Cavoukian, ensuring privacy is embedded into the protocol architecture rather than added as an afterthought. The formal verification process employed in this research follows methodologies similar to those used in verifying TLS 1.3, as documented in the work of Karthikeyan Bhargavan et al., demonstrating the maturity of formal methods for real-world protocol analysis.

The technical contribution extends beyond the specific protocol to the methodology itself. By employing multiple formal analysis approaches—process algebra, pi calculus, and symbolic models—the researchers provide a comprehensive security assessment. This multi-faceted approach is crucial, as different methods can reveal different classes of vulnerabilities. For instance, while symbolic models excel at finding logical flaws, computational models like those in CryptoVerif provide stronger guarantees about cryptographic implementations.

The experimental results showing successful verification of all critical security properties against a Dolev-Yao adversary provide strong evidence of the protocol's robustness. However, as noted in the analysis of similar protocols like Signal by Tilman Frosch et al., formal verification doesn't eliminate all risks—implementation flaws and side-channel attacks remain concerns. Future work should address these aspects through combined formal and practical security analysis.

This research contributes to the growing body of evidence, as seen in projects like the Everest verified HTTPS stack, that formal methods are becoming practical for real-world security-critical systems. The Permission Voucher Protocol's verification represents an important step toward mathematically guaranteed security in our increasingly connected urban environments.

9. References

1. Reaz, K., & Wunder, G. (2024). Formal Verification of Permission Voucher Protocol. arXiv:2412.16224
2. Bhargavan, K., et al. (2017). Formal Verification of TLS 1.3 Full Handshake. Proceedings of the ACM Conference on Computer and Communications Security.
3. Blanchet, B. (2016). Modeling and Verifying Security Protocols with the Applied Pi Calculus and ProVerif. Foundations and Trends in Privacy and Security.
4. Frosch, T., et al. (2016). How Secure is TextSecure? IEEE European Symposium on Security and Privacy.
5. Dolev, D., & Yao, A. (1983). On the Security of Public Key Protocols. IEEE Transactions on Information Theory.
6. Zhu, J.-Y., et al. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. ICCV.
7. Schmidt, B., et al. (2018). The Tamarin Prover for Security Protocol Analysis. International Conference on Computer Aided Verification.
